ChronoBatch


The ChronoBatch object allows you to access the Batch object.

Methods:

Returns
Method
Description
String
GetVariableValue
Description:
   Returns a ChronoScan variable, it includes variables related with the batch

Parameters:
   String variable - Requested variable to ChronoScan, for example "station_id"

You can see a complete variable list in the variables wizard window of ChronoScan.

Return value for the selected ChronoScan variable.

CancelProcess
Cancel current batch processing

Short
DeleteDocument
Deletes a single document

Parameters:

   Short document number

Short
DeleteAllDocuments
Empty the Batch

Short
ExecuteInputModule
Parameters:

modname:

  • image_files (import image files)
  • pdf_files (import PDF files with text extraction and image conversion)

modparams:

  • ConfigName#parameter=value#parameter=value

Allowed parameters of pdf_files module:
  • directory = c:\temp
  • extensions = *.pdf | onlythisfile.pdf | *.pdf;*.pdfx
  • finddirs = true|false
  • textread = true|false
  • maxfiles =
  • pagestoextract =
  • extracmode = 0 (images) | 1 (convert to image)
  • resolution = 96|120|150|200|300|400|600
  • colortype = 0 (black and white) | 1 (color)
  • splitonfile = true|false
  • splitondir = true|false
  • orientateauto = true|false
  • deleteonimport = true|false
  • renameimportfile = sav
  • movetofolder = <c:\process_folder> or <\process_folder>
  • for_fast_text_processing = 1 (speed up text extraction, warning: setting this parameter to 1 means that image quality will be lower)
  • debug = 1 (allows to view the import options before import)

Allowed parameters of image_files module:

  • directory = c:\temp
  • filename = *
  • extension = *
  • finddirs = true|false
  • maxfiles =
  • splitonfile = true|false
  • splitondir = true|false
  • importfromlastfile = true|false
  • deleteonimport = true|false
  • renameimportfile = sav
  • movetofolder = <c:\process_folder> or <\process_folder>
  • debug = 1 (allows to view the import options before import)

Short
ExecuteProcess
Parameters:

operations:

  • CROP
  • DESKEW
  • OCR
  • PRETRIGGERS
  • TYPEDETECT
  • FIELDREAD
  • XGRIDREAD
  • PATTERNREAD
  • EXPORTBATCH
  • BEEP
  • SENDMAIL

Use ; to execute more than one operation at once (ex: DESKEW;OCR)
If empty will use the configured options on the Batch.

Void
ExecuteBarcode
Executes the barcode configurations on all documents/pages. This function only update the barcode read, it won't split, delete, ignore, ect
String
GetConversionModule_File
Returns the file generated by specific conversion module

Parameters:

   Short item number
   String Export module name


long
GetConversionModule_FileCount
Returns the number of items generated by specific conversion module

Parameters:

String Export module name


long
GetDocCount
Returns the number of documents

long
GetDocCountStatus
Returns the number of documents with a specific status

Parameters:
   Short status, 0=validated, 1=error

short
GetExportStatus
Returns the export status

  • 0 = not exported
  • 1 = exported ok
  • 2 = not exported because of not validated documents
  • 3 = error exporting
  • 4 = export canceled

short
SetExportStatus
Sets the export status

Parameters:
   Short new status:
  • 0 = not exported
  • 1 = exported ok
  • 2 = not exported because of not validated documents
  • 3 = error exporting
  • 4 = export canceled
short
SetEntityID
Sets an entity to a batch

Parameters:
   String new entity ID
long
GetLastInputCount
Returns the number of documents generated by last scan/import process

GetDocument
Return ChronoDocument object of a specific row

Parameters:

   Short document number


String
GetJobName
Returns Job Name

String
GetName
Returns Batch Name

String
GetDateCreated
Returns Batch date creation
String
GetDateUpdated
Returns Batch date update
String
GetUserField
Returns the value of a specific row/field

Parameters:

   Short document number
   String Field name


String
GetSystemField
Returns the value of a specific system row/field

Parameters:

   Short document number
   String System Field name


String
GetXgridFieldValue
Returns the value of a specific capture grid field

Parameters:

   Short document number
   Short grid number
   Short grid row number
   String Field name


String
GetXgridColumnValue
Return the value of a specific capture grid field by column number

Parameters:

   Short document number
   Short grid number
   Short grid row number
   Short column number

Short
GetXgridFieldBitmap
Save the zone bitmap of a specific capture grid field to a file

Parameters:

   Short document number
   Short table number
   Short talbe row number
   String Field name

Return

   TRUE if success


Short
GetXgridRowCount
Return the number of records of a specific capture grid

Parameters:

   Short document number
   Short table number


Short
GetXgridLastEdited
Return the number of last edited capture grid, This function can be used in OnXGridValueChanged event

String
GetXgridLastEditedField
Return the name of last edited capture grid, This function can be used in OnXGridValueChanged event

Parameters:

   Short table number

Short
IsValidated
Return true if document is validated

Parameters:

   Short row number


Short
MergeDocuments
Merge two documents

Parameters:

   Short target document number
   Short document number to merge

Return

   TRUE if success


Short
Save
Save Changes on the Batch

Short
SetUserField
Update Field value of a specific row/field

Parameters:

   Short document number
   String Field name
   String new value

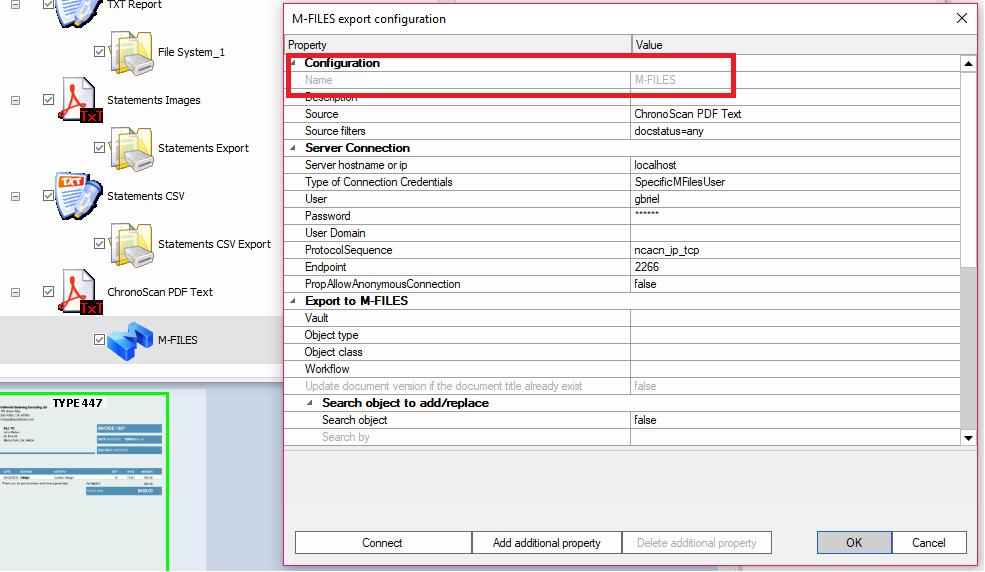

M-Files Server Application
GetOutModule_MFilesServerApplication
Returns the M-Files Server Application object linked to the specified M-Files export module configuration

Parameters:

   String M-Files export module configuration

Sample:

Set oServerApp = Batch.GetOutModule_MFilesServerApplication("M-FILES")

'rest of the code goes here
