3.3.14.3. M-FILES - Link Scanned Documents to an Existing M-FILES Object
Sometimes you want ChronoScan to link the scanned documents/metadata with a specific M-FILES object. This article shows the basics steps to do this:
Initial sample structure:
SAMPLE FOLDER class will hold a set of SAMPLE DOC objects:

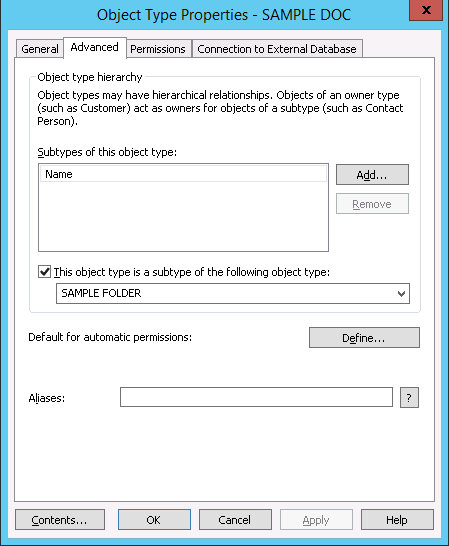

SAMPLE DOCS is a subtype of SAMPLE FOLDER:

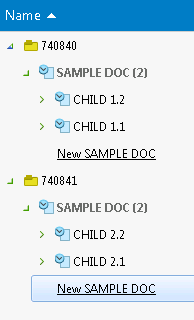

Sample data:
Method 1: Send the ID of the Parent Object Using Command Line Switches.
Start ChronoScan adding a custom command line switch to it:
ex: chronoscan.exe -myMfilesParentID:"17"
On ChronoScan's form editor, create a new Field called ParentID and add to the OnValidation script the following lines:
If UserField_ParentID.value = "" Then
UserField_ParentID.value = ChronoApp.cmdline_GetValue("myMfilesParentID")
End If
Now all scanned documents on this session will be linked to object ID 17.

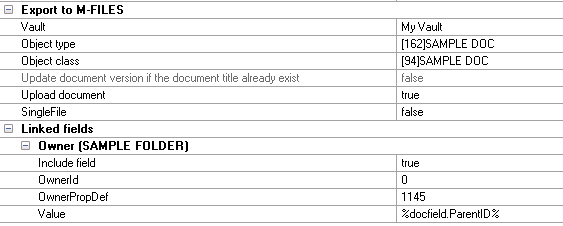

On the export configuration set the correct Owner to the exported documents:
Method 2: Allows Users to Find Parent Documents on a ChronoScan Field Using the Client API

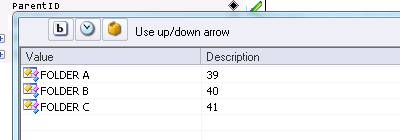

With this sample script we will allow to select the parent folder directly selecting the owner on the ChronoScan form:
Edit the OnEnterEdit script of your ParentID field:
Vault = "Your vault name here"
ObjectId = 161 ' Your object Id here
Set oMFAPIApp = CreateObject("MFilesAPI.MFilesClientApplication")
Set g_oVault = oMFAPIApp.BindToVault("Your vault name here", 0, True, True)
Set oItems = g_oVault.ValueListItemOperations.GetValueListItems(ObjectId, True, 0)
Call UserField_ParentID.HelpList_Clear()
For Each Item In oItems
Call UserField_ParentID.HelpList_AddValueDescription(Item.Name, Item.ID)
Next
Call UserField_ParentID.HelpList_Populate()
On your export configuration ensure to set the parent Id as the sysval_list_desc_ParentID (or your field name)
